Product Description

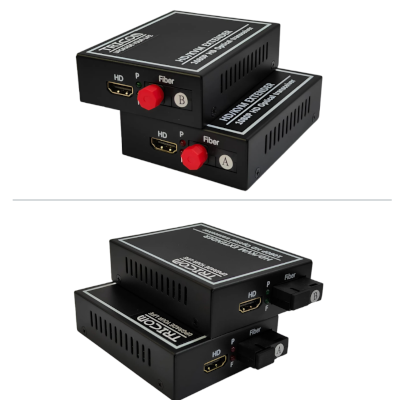

HDMI over fiber extender is an extender mainly connected through fiber optic cable to serve the purpose of transmission. The computer system can be accessed from the remote USB receiver control terminal. Through optical fiber connection, the transmission distance can be extended up to 20 km. It can connect the computer /DVR / video camera and other HDMI video signals and USB keyboard (optional) and mouse signals and Audio(optional) through the optical fiber line to extend the multi-mode optical fiber line (300-500 meters) single-mode optical fiber line more than 20 km of the receiving end, users can operate the control and watch the video from a distance. The product consists of a transmitter and a receiver, which are used in pairs. The maximum support video resolution is up to 1920*1080P@60HZ, and the resolution can be compatible below

Features

1. SC/FC fiber interface
2. Supports the highest resolution up to 1920*1080P@60HZ
3. Support HDMI1.4
4. Support USB1.0 transmission, and provide four USB ports on the remote side, support USB devices;
5. Supports series and convergence of optical fibers
6. Automatic MDI/MDI-X crossover
