Product Description

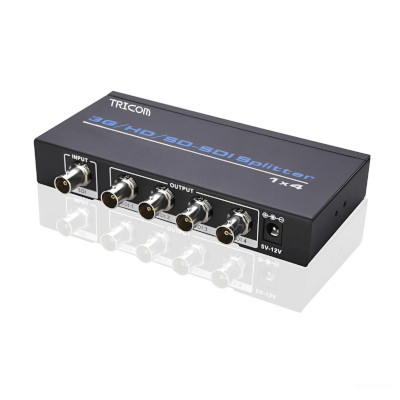

The 1×4 SDI splitter distributes 1 SDI, HD-SDI or 3G-SDI video source to 4 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all formats of SDI signal. It supports 2.97Gbps bandwidth, and supports lossless transmission over long distances.

Features

1. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
2. Built-in cable equilibrium, clock recovery and drive.
3. Supports resolutions up to 1920x1080@60Hz.
4. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
5. Supports 5-12V wide voltage input.
6. 1 SDI input signal split to 4 SDI sink devices.
