HDMI Capture Card
 HDMI Capture Card
Datasheet

Description

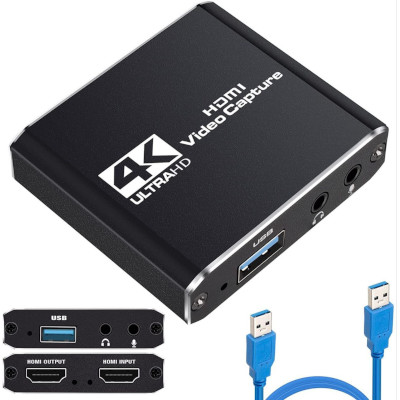

The HDMI to USB 2.0 Video Capture Dongle, is easy to carry, has superior performance, superior compatibility, simple installation and many other features. It can capture one HDMI 4Kp30 input, output HDMI 4Kp30 and USB 1080p60 signals. The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

Features

1. It doesn't need to install a driver, and it is truly PnP.
2. It is compatible with Windows, Linux, OS X operating systems
3. USB 2.0, 300-350MB/s throughput.
4. The process of video and audio is done by the dongle and will not occupy the CPU.
5. It can capture one single channel HDMI video signal.
6. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
7. Support HDMI 1.4
8. Support HDMI loop output 4Kp30
9. Support MIC input and audio output.
