Description

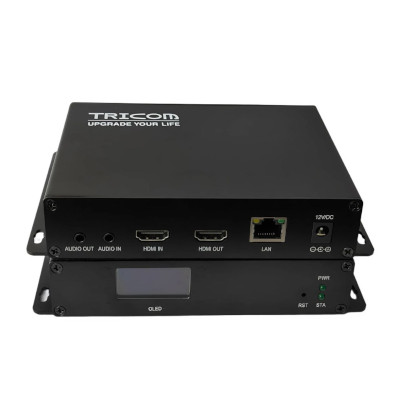

This is a professional hardware video and audio encoder. Which is designed to meet the HD/1080P@60 Video transmission applications. It supports H.265(HEVC)/H.264 high-performance encoding. Also, it supports most protocols including HTTP/SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif, etc. Its high integration and cost-effective design make this device widely used in the variety of fields such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.

Products Features

1. Support H.265/H.264 /MJPEG encoding
2. Support 1 X HDMI Input and loop-out
3. Support Digital audio/Analog audio loop output.
4. Support HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV/Onvif protocol
5. Support output video stream format: TS/VES/AES stream, etc.
6. LCD display device name, IP address, resolution and working status
7. Support up to 1080P@60 resolution input and output
8. Support audio encoding without the video input
9. Support 4 channel streams output at the same time.
10. Support MP3/AAC/G.711 Advanced Audio Coding Format quality.
11. Support POE Power supply (Optional)
12. Support HDCP 1.4
13. 1000M network interface uses full duplex mode, LAN and WAN transmission
14. Support SDK, secondary development
15. Support network remote management and upgrade
16. Support to be packed with 1U and 3U Rack (1~16 channels video input)
17. Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
18. 7*24h Working
